Phospho-Zap70 (Tyr319)/Syk (Tyr352) (A3) rabbit mAb

Catalog #: 2076
Select Your Size Price
200 uL (0.5 mg/mL)(2076) $475.00
20 uL (0.5 mg/mL)(2076S) $175.00
From $175.00

Need to make a custom order?

Contact us


20 μL is enough antibody for at least 20 Western blots.

Product Overview

ZAP70 (Tyrosine-protein kinase ZAP-70, phospho Zap70) is a protein tyrosine kinase (PTK) that associates with the z subunit of the T cell antigen receptor (TCR) and undergoes tyrosine phosphorylation following TCR stimulation. Following TCR engagement, Zap-70 is rapidly phosphorylated on several tyrosine residues through autophosphorylation and transphosphorylation by the Src family tyrosine kinase Lck. ZAP70 contains two SH2-like domains with the PTK domain located at the C-terminus. It appears that both phospho Zap70 and Syk are recruited to the phosphorylated CD3 and z subunits after TCR stimulation. Phosphorylation of Tyr319 is required for the assembly of a phospho Zap70-containing signaling complex that leads to the activation of the PLC-gamma1-dependent and Ras-dependent signaling cascades in antigen-stimulated T cells. The orthologous Tyr352 residue in Syk is also involved in the association with PLC-gamma1.

Product Details

Product Details
Specification Description
Applications Flow Cytometry
Clone Zap70Y319-A3
Format Unconjugated
Validated Reactivity Human, Mouse
Cross Reactivity Predicted to work with mouse, rat and other homologues.
Detection Anti-Rabbit IgG
Clonality Monoclonal
Immunogen A synthetic phospho-peptide corresponding to residues surrounding Tyr319/Tyr352 of human phospho Zap70/Syk.
Formulation 1X PBS, 0.02% NaN3, 50% Glycerol, 0.1% BSA
Isotype Rabbit IgGk
Preparation Protein A+G
Recommended Usage 1µg/mL – 0.001µg/mL. It is recommended that the reagent be titrated for optimal performance for each application. See product image legends for additional information.
Storage -20ºC
Pseudonyms Tyrosine-protein kinase ZAP-70 , 70 kDa zeta-chain associated protein, Syk-related tyrosine kinase, SRK, Tyrosine-protein kinase SYK, Spleen tyrosine kinase, p72-Syk
Uniprot ID P43403 P43405
References 1. Brdicka T et al., (2005) Mol Cell Biol 25:4924–4933.
2. Chan AC et al., (1992) Cell 71:649–662.
3. Cheng AM et al., (1997) Proc Natl Acad Sci94:9797–9801.
4. Deindl S et al., (2007) Cell 129:735–746.
5. Elder ME et al., (1994) Science 264:1596–1599.
6. Negishi I et al., (1995) Nature 376:435–438.
7. Yokosuka T et al., (2005) Nat Immunol 6:1253–1262.


Cell Culture Products
ZapY319-A3 recognizes basal phosphorylation levels in mouse cells. Flow cytometric analysis of L929 cells secondary antibody only (blue) or 0.1 µg/mL of isotype control Cat. #2141 (orange) or of Phospho-Zap70 (Tyr319)/Syk (Tyr352) antibody ZapY319-A3 (green) Cat. #2076.
Cell Culture Products
Flow cytometric analysis of Jurkat cells secondary antibody only negative control (blue) untreated (red) treated with pervanadate (green) treated + blocked with non-phospho-peptide (violet) or treated +blocked with phospho-peptide (brown) using Phospho-Zap70 (Tyr319)/Syk (Tyr352) antibody ZapY319-A3 (0.05 µg/mL) Cat. #2076.
Cell Culture Products

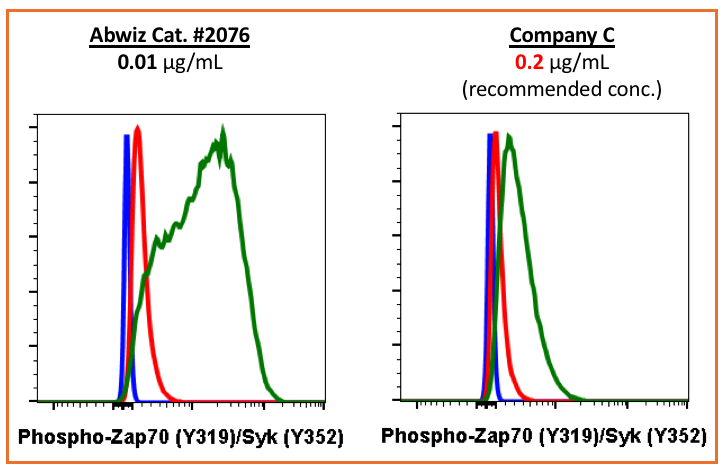

Flow cytometric analysis of Jurkat cells secondary antibody only negative control (blue) or untreated (red) or treated with H2O2 (green) using 0.01 µg/mL Phospho-Zap70 (Y319)/Syk (Y352) antibody ZapY319-A3 (Abwiz Cat. #2076) or Company C antibody at 0.2 µg/mL (manufacturer's recommended concentration).
Cell Culture Products
Flow cytometric analysis of Jurkat cells, untreated (red) or treated with pervanadate (green) using Phospho-Zap70(Tyr319)/Syk (Tyr352) A3 antibody Zap70Y319-A3 at 0.01 µg/mL, Cat.#2077 or concentration matched isotope (KLH-G9) for untreated cells (gray) or treated with pervandate (blue) Cat.#2141 #2436.
