Phospho-KSR1 (Ser392) (3A4) rabbit mAb

Catalog #: 2186
Select Your Size Price
200 uL (0.5 mg/mL)(2186) $475.00
20 uL (0.5 mg/mL)(2186S) $175.00
From $175.00

Need to make a custom order?

Contact us


20 μL is enough antibody for at least 20 Western blots.

Product Overview

The kinase suppressor of Ras 1 (KSR1) is a molecular scaffold protein that regulates the activation of the Raf/MEK/extracellular signal-regulated kinase (ERK) signal transduction pathway (1-3). KSR1 expression regulates the intensity and duration of growth factor-induced ERK activation to modulate cell proliferation, H-RasV12-induced transformation and senescence, and adipogenic potential. KSR1 disruption in mammalian models inhibits oncogenic Ras-induced senescence and transformation in vitro and in vivo (4,5). KSR1 translocates to the plasma membrane in response to growth factor treatment and Ras activation, where it forms a complex involving Raf-1, MEK1 and 14-3-3 protein and facilitates the activation of MEK by Raf and of ERK by MEK (6). KSR1 also mediates ERK-dependent negative feedback signaling on Raf, MEK, and KSR1 (7). In non-stimulated cells, KSR1 is sequestered in the cytosol through 14-3-3 protein binding after phosphorylation by C-TAK1 at Ser297 and Ser392. Meanwhile, KSR1 constitutively interacts with MEK and ERK. Upon growth factor stimulation, activated Ras triggers the dephosphorylation of KSR1 at Ser392 by PP2A, leading to the release of 14-3-3 protein from its binding sites. This in turn allows phospho KSR1 to translocate to the cell membrane, where phospho KSR1 forms a complex with Raf, MEK and ERK (8). KSR1 thus potentially enhances the phosphorylation of Raf, MEK and ERK, facilitating the upstream signalling transduction as well as regulating multiple cellular functions by activation of various substrates.

Product Details

Product Details
Specification Description
Applications Flow Cytometry
Clone KSR1S392-3A4
Format Unconjugated
Validated Reactivity Human, Mouse
Cross Reactivity Predicted to work with mouse, rat and other homologues.
Detection Anti-Rabbit IgG
Clonality Monoclonal
Immunogen A synthetic phospho-peptide corresponding to residues surrounding Ser392 of human phospho KSR1
Formulation 1X PBS, 0.02% NaN3, 50% Glycerol, 0.1% BSA
Isotype Rabbit IgGk
Preparation Protein A+G
Recommended Usage 1µg/mL – 0.001µg/mL. It is recommended that the reagent be titrated for optimal performance for each application. See product image legends for additional information.
Storage -20ºC
Pseudonyms Kinase suppressor of Ras 1
Uniprot ID Q8IVT5
References 1. Kortum RL, et al., (2004) Mol. Cell. Biol. 24:4407–16.
2. Nguyen A, et al., (2002) Mol. Cell. Biol. 22:3035–45.
3. Roy F, et al., (2002) Genes Dev. 16:427–38.
4. Kortum RL, (2006) Cell. Biol. 26:2202–14.
5. Lozano J, et al., (2003) Cancer Res. 63:4232–8.
6. Sundaram M, et al., (1995) Cell 83:889–901.
7. McKay MM, et al., (2009) Proc. Natl. Acad. Sci. U. S. A. 106:11022–7.
8. Therrien, M, et al., (1995) Cell 83, 879–88.


Cell Culture Products
KSR1S392-3A4 recognizes basal phosphorylation levels in mouse cells. Flow cytometric analysis of NIH3T3 cells secondary antibody only (blue) or 0.1 µg/mL of isotype control Cat. #2141 (orange) or of Phospho-KSR1(S392) antibody KSR1S392-3A4 (green) Cat. #2186.
Cell Culture Products

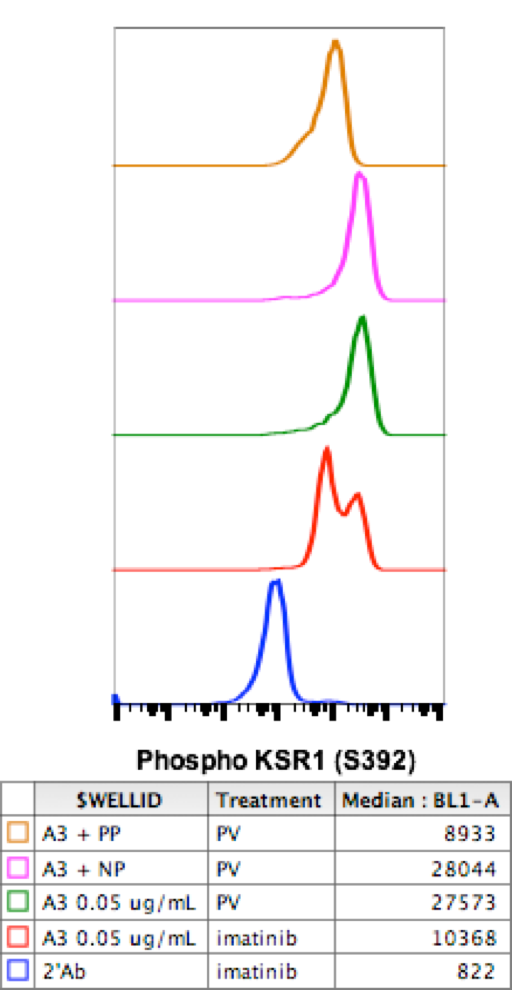

Flow cytometric analysis of K562 cells secondary antibody only negative control (blue) treated with imatinib (red) treated with PV (green) treated with PV + blocked with non-phospho peptide (violet) or treated with PV + blocked with phospho-peptide (brown) using Phospho-KSR1(S392) antibody KSR1S392-3A4 0.05 µg/mL. Cat. # 2186.
Cell Culture Products

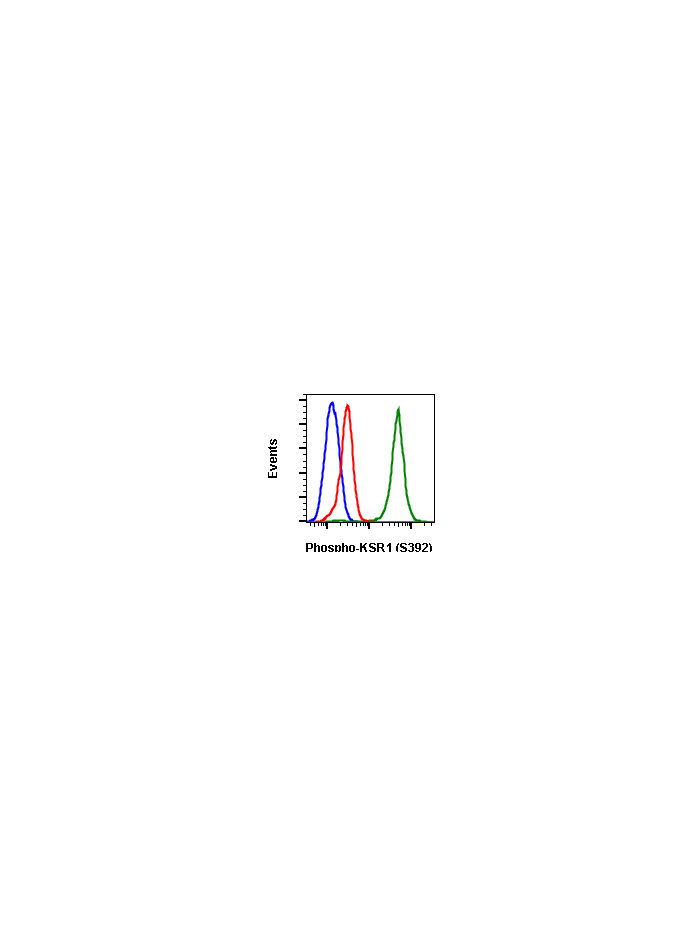

Flow cytometric analysis of HeLa human adenocarcinoma cells untreated and unstained as negative control (blue) or treated with lambda phosphatase and stained (red) or untreated and stained (green) using Phospho-KSR1 (S392) antibody, KSR1S392-3A4 at 0.1 µg/mL. Cat. #2186.
